Product Details:
Minimum Order Quantity | 1 Piece |
Brand | IMADA |
Measuring Range | 0 to 1000N |
Model Name/Number | HTG2 |
Display Type | DIGITAL |
Model | HTG2-2N,HTG2-5N,HTG2-10N,HTG2-200Nc, HTG2-500Nc, HTG2-1000Nc |
Capacity | 2N-m(200gf-m) , 5N-m(500gf-m) ,10N-m(1.000kgf-m) , 200N-cm(20.00kgf-cm) , 500N-cm(50.00kgf-cm) ,1000 |
Resolution | 0.001N-m(0.1gf-m), 0.1N-cm(o.01kgf-cm), 0.01N-m(0.001kgf-m), 0.1N-cm(0.01kgf- |
Display | 2.000N-m(200.0gf-m) , 5.000N-m(500.0gf-m) , 10.00N-m(1.000kgf-m) , 200.0N-cm(20.00kgf-cm) , 500.0N-c |
Product Details:
Brand | IMADA |
Measuring Range | 5N to 500N |
Model Name/Number | PS-5N to PS-500N |
Display Type | Dial |
Color | Black or White |
Accuracy | +/-1.0%F.S. or less |
Capacity | 5N to 500N |
Model | Capacity | 1 division | Thread |
FB-10N | 10N | 0.1N | M6 |
FB-20N | 20N | 0.2N | |
FB-30N | 30N | 0.25N | |
FB-50N | 50N | 0.5N | |
FB-100N | 100N | 1N | |
FB-200N | 200N | 2N | |
FB-300N | 300N | 2.5N | |
FB-500N | 500N | 5N | |
Model(NOT available in Japan) | Capacity | 1 division | Thread |
FS-1K | 1kgf | 10gf | M6 |
FS-2K | 2kgf | 20gf | |
FS-3K | 3kgf | 25gf | |
FB-5K | 5kgf | 50gf | |
FB-10K | 10kgf | 100gf | |
FB-20K | 20kgf | 200gf | |
FB-30K | 30kgf | 250gf | |
FB-50K | 50kgf | 500gf | |
Model(NOT available in Japan) | Capacity | 1 division | Thread |
FB-5lb | 5lbf | 0.05lbf | M6 |
FB-10lb | 10lbf | 0.1lbf | |
FB-20lb | 20lbf | 0.2lbf | |
FB-30lb | 30lbf | 0.25lbf | |
FB-50lb | 50lbf | 0.5lbf | |
FB-100lb | 100lbf | 1lbf |
Product Details:
Minimum Order Quantity | 1 per pic |
Simple type | for simple compression |
capacity | 500 n- 2500 n |
model | MH , MX, MX2, MH2 , EMX |
made in | Japan |
type | MOTORIZED |
colour | METALLIC WHITE |
Additional Information:
Product Details:
Brand | IMADA |
Measuring Range | 0 to 1000 Newton |
Model Name/Number | FB SERIES |
Display Type | DIAL |
Accuracy | +/- 2% |
Capacity | 1000 N |
Gauges Measure | NEWTON KGF LB |
Model | DS2 series |
Accuracy | +/-0.2% F.S.+/-1 digit |
Unit of measurement | N/kfg/lbf |
Display | 4-digit LCD |
Sampling rate | 1000 data / sec. (max) |
Display update | 10 times / sec. |
Safe overload rating | Approx. 200%F.S. |
Function | Peak hold/Comparator/Display reverse/Damping(2 levels) |
Power | Internal four AA Ni/MH batteries or external AC adapter |
Battery life | Approx. 10 hours(Approx.10-hour charge) |
Operating temperature | 0 to +40 degree Celcius |
Operating humidity | 20 to 80% RH |
Weight | Approx.420g |
Output | Digital (RS232C), Mitutoyo Digimatic, analog (+/-1VF.S.) |
Accessory | 6 kinds of attachments, AC adapter, Carrying case, Instruction manual, Inspection certificate |
External connecting switch | SEND (HOLD) / ZERO clear / PEAK |
Model table of DS2 series Economical Model Digital Force Gauge
Model | Capacity | Display | Resolution | Thread |
DS2-2N | 2N (200gf) | 2.000N (200.0gf) | 0.001N (0.1gf) | M6 |
DS2-5N | 5N (500gf) | 5.000N (500.0gf) | 0.001N (0.1gf) | |
DS2-20N | 20N (2kgf) | 20.00N (2.000kgf) | 0.01N (0.001kgf) | |
DS2-50N | 50N (5kgf) | 50.00N (5.000kgf) | 0.01N (0.001kgf) | |
DS2-200N | 200N (20kgf) | 200.0N (10.00kgf) | 0.1N (0.01kgf) | |
DS2-500N | 500N (50kgf) | 500.0N (51.00kgf) | 0.1N (0.01kgf) | |
DS2-1000N | 1000N (100kgf) | 1000N (100.0kgf) | 1N (0.1kgf) |
*lbf indication is also possible.
Product Details:
Minimum Order Quantity | 1 piece |
Brand | IMADA |
Capacity | 0.01 to 10 NM |
Display Type | Digital |
Accuracy | +/- 0.5 |
Display | DIGITAL |
Automation Grade | Automatic |
Model Name/Number | DTXA DTXS |

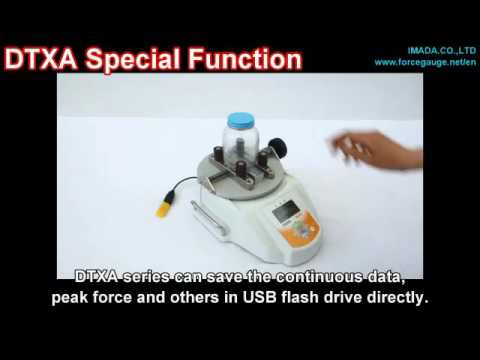

- Measure torque of opening PET bottles an bins.
- High repeatability by high speed sampling rate.
- Various sample torque can be measured with the multipel tables and attachments.
- Useful functions improving work efficiency
Testing Applications
- Key turning torque test
- Lipstick container turning force test
- PET bottle screw cap opening torque test
DTXS Series
Simple standard model maintaining DTXA performance.
Available Models & Capacity
DTXA-2N Capacity: 2 Nm
DTXA-5N Capacity: 5 N-m
DTXA-10N Capacity: 10 N-m
DTXA Series
Advanced model equipping various functions such as input/output the angles and saving to USB flash drive.
Available Models & Capacity
DTXA-2N Capacity: 2 Nm
DTXA-5N Capacity: 5 N-m
DTXA-10N Capacity: 10 N-m
*Please send your inquiry for more details.
Product Details:
Model Name/Number | DSV 50N DSV 100N DSV 200N DSV 500N DSV 1000N |
Display Type | DIGITAL |
Brand | IMADA |
Model | DSV |
Measuring Range | 0-1000 N |
Accuracy | +/- 1% |
Capacity | upto 1000 NEWTON |
DSV improves reproducibility in hand-held use.
DSV is an advanced model equipped with tilt-sensing function, Internal memory (1000) function, and more.
Ideal for hand-held use due to the hand fitting design and the lightweight
Easy data management and OK judgement
In capacity up to 1000N, handling a wide range of force testing
Model | Capacity | Display | Resolution | Thread | Supplied attachments |
DSV(DST)-2N | 2N | 2.000N | 0.001N | M6 | A1~A6 |
DSV(DST)-5N | 5N | 5.000N | 0.001N | ||
DSV(DST)-20N | 20N | 20.00N | 0.01N | ||
DSV(DST)-50N | 50N | 50.00N | 0.01N | ||
DSV(DST)-200N | 200N | 200.0N | 0.1N | S1(SR1*)~S6 | |
DSV(DST)-500N | 500N | 500.0N | 0.1N | ||
DSV(DST)-1000N | 1000N | 1000N | 1N |
Additional Information:
Product Details:
Minimum Order Quantity | 1 Piece |
Brand | Imada |
Maximum Travel Distance (mm) | Travel distance per wheel rotation 1.2mm |
Material | iron |
Resolution | 0.0005"/0.01 mm |
Display | Push button for inch/mm, zero set and on/off |
Accuracy | 0.1% of reading or 0.005"/0.1 mm whichever is greater |
model | SVL-220 Vertical Wheel Test Stand Dimensions ,HV Vertical Wheel Test Stand, SVH-220 Vertical Wheel T |
Additional Information:
Product Details:
Material | iron casting |
Brand | Imada |
Speed Range (RPM) | in/min (mm/min) MX2-110 0.4~12 (10~300) |
Maximum Travel Distance (mm) | 9.4" (240mm)-12.2" (300mm) |
Capacity | 110 lbf-1100 lbf |
(Optional Distance Meter Available, Please Inquire)
Standard FeaturesMX2 Motorized Test Stands offer advanced force testing features such as digital speed control, timer control, and cycle counter. The MX2 force measurement test stand incorporates an easy to read LCD screen onto the base. Use the intuitive program dial to set the mode, speed, test duration time, number of cycles and change other available test settings. With numerous customizable test settings, the test stand can be used for a variety of tests including: destructive, non-destructive testing, limit testing to a force value, cycle testing and more.
Force Control CapableForce controlled non-destructive tests are also easy to setup and program. Connect an Imada ZT Series force gauge to the MX2 test stand to enable two force controlled modes and Conditional Overload Prevention. Force control allows users to program the test stand to move until a certain force value is reached. For more information see the force control tab below.
Unparalleled UtilityThe MX2 accepts any of the standard range Imada force gauges. Imada recommends using ZT Series gauges to take advantage of all of the features of the MX2. Optional digital distance meters are available in both standard and high speed variety. Both digital distance meters have PC output capabilities, for more information
Product Details:
Brand | IMADA |
Measuring Range | 0 to 5000 NEWTON |
Model Name/Number | ZTA ZTS SERIES ZTA-500N ZTA-1000N ZTA-2500N |
Display Type | DIGITAL |
Size | STANDARD |
Accuracy | +/- 1% |
Additional Information:
Product Details:
Minimum Order Quantity | 1 Piece |
Model Name/Number | DS2-50N DS2-200N DS2-500N |
Display Type | Digital |
Brand | IMADA |
Model | DS2-50N DS2-200N DS2-500N |
Measuring Range | 50 N, 200 N & 500N |
Model | DS2 series |
Accuracy | +/-0.2% F.S.+/-1 digit |
Unit of measurement | N/kfg/lbf |
Display | 4-digit LCD |
Sampling rate | 1000 data / sec. (max) |
Display update | 10 times / sec. |
Safe overload rating | Approx. 200%F.S. |
Function | Peak hold/Comparator/Display reverse/Damping(2 levels) |
Power | Internal four AA Ni/MH batteries or external AC adapter |
Battery life | Approx. 10 hours(Approx.10-hour charge) |
Operating temperature | 0 to +40 degree Celcius |
Operating humidity | 20 to 80% RH |
Weight | Approx.420g |
Output | Digital (RS232C), Mitutoyo Digimatic, analog (+/-1VF.S.) |
Accessory | 6 kinds of attachments, AC adapter, Carrying case, Instruction manual, Inspection certificate |
External connecting switch | SEND (HOLD) / ZERO clear / PEAK |
Model table of DS2 series Economical Model Digital Force Gauge
Model | Capacity | Display | Resolution | Thread |
DS2-2N | 2N (200gf) | 2.000N (200.0gf) | 0.001N (0.1gf) | M6 |
DS2-5N | 5N (500gf) | 5.000N (500.0gf) | 0.001N (0.1gf) | |
DS2-20N | 20N (2kgf) | 20.00N (2.000kgf) | 0.01N (0.001kgf) | |
DS2-50N | 50N (5kgf) | 50.00N (5.000kgf) | 0.01N (0.001kgf) | |
DS2-200N | 200N (20kgf) | 200.0N (10.00kgf) | 0.1N (0.01kgf) | |
DS2-500N | 500N (50kgf) | 500.0N (51.00kgf) | 0.1N (0.01kgf) | |
DS2-1000N | 1000N (100kgf) | 1000N (100.0kgf) | 1N (0.1kgf) |
*lbf indication is also possible.
Additional Information:
Product Details:
Brand | IMADA |
Measuring Range | 500 N to 3000 N |
Model Name/Number | PSH-500, PSH-1000, PSH-2000N , PSH-3000 |
Display Type | Precision type of push pull gauges with high resolution scale. |
Color | Black or White |
Accuracy | +-0.1%F. S or less |
Capacity | The weight is depending on the range. |
Model |
Capacity |
Resolution |
Thread |
PSH-500N |
500N |
5N |
M10
|
PSH-1000N |
1000N |
10N |
|
PSH-2000N |
2000N |
20N |
|
PSH-3000N |
3000N |
25N |
Model |
Capactiy |
Resolution |
Thread |
PSH-50K |
50kgf |
500gf |
M10
|
PSH-100K |
100kgf |
1kgf |
|
PSH-200K |
200kgf |
2kgf |
|
PSH-300K |
300kgf |
2.5kgf |
Model |
Capactiy |
Resolution |
Thread |
PSH-200Ib |
200Ibf |
2Ibf |
M10
|
PSH-300Ib |
300Ibf |
2.5Ibf |
|
PSH-500Ib |
500Ibf |
5Ibf |
Product Details:
Accuracy | +/-0.2% F.S.+/-1 digit |
Display | 4-digit LCD |
Sampling rate | 1000 data / sec. (max) |
Display update | 10 times / sec. |
Safe overload rating | Approx. 200%F.S. |
Battery life | Approx. 10 hours(Approx.10-hour charge) |
Product Details:
Minimum Order Quantity | 1 Piece |
Brand | IMADA |
Measuring Range | 2.000 NM TILL 1000 NM |
Model Name/Number | Dsv |
Display Type | Digital |
Color | Black or White |
Accuracy | +/-2.0%F.S. or less |
Capacity | 2.000 N TILL 1000 N |
Gauges Measure | Force |
Packaging Type | Box type |
Usage/Application | industrial |
Warranty | 1 year |
Additional Information:
Product Details:
Minimum Order Quantity | 1 Piece |
Brand | IMADA |
Measuring Range | 2.000 N TILL 1000 N |
Model Name/Number | ZTA-2N to ZTA-1000N |
Display Type | Digital |
Accuracy | +/-2.0%F.S. or less |
Capacity | 2.000 N TILL 1000 N |
Model | Range | Display | Resolution | Thread | |
ZTA-2N | ZTS-2N | 2N (200GF) | 2.000N/2000 mN (200.0gf) | 0.001N/1mN (0.1gf) |
M6 |
ZTA-5N | ZTS-5N | 5N (500GF) | 5.000N/5000 mN (500.0gf) | 0.001N/1mN (0.1gf | |
ZTA-20N | ZTS-20N | 20N (2kgf) | 20.00N (2.000kgf) | 0.01N (0.001kgf) | |
ZTA-50N | ZTS-50N | 50N (5kgf) | 50.00N (5.000kgf) | 0.01N (0.001kgf) | |
ZTA-100N | ZTS-100N | 100N (10kgf) | 100.0N (10.00kgf) | 0.1N (0.01khf) | |
ZTA-200N | ZTS-200N | 200N (20kgf) | 200.0N (20.00kgf) | 0.1N (0.01kgf) | |
ZTA-500N | ZTS-500N | 500N (50kgf) | 500.0N (50.00kgf) | 0.1N (0.01kgf) | |
ZTA-1000N | ZTS-1000N | 1000N (100kgf) | 1000N/1.000kN (100.0kgf) |
Product Details:
Brand | IMADA |
Measuring Range | 500 N to 1500 N |
Model Name/Number | PK1-500N PK2-1500N EPK2-1500N |
Display Type | Digital |
Accuracy | +/-1.0%F.S. or less |
Capacity | 500n to 1500n |
Gauges Measure | Force |
Additional Information:
Product Details:
Brand | IMADA |
Measuring Range | 2.000 N TILL 5000 N |
Model Name/Number | ZTA 0.4 ,ZTA-1,ZTA-11, ZTA-44, ZTA-110 , ZTA-220 ,ZTA -550, ZTA-1100 |
Display Type | Color-coded LED indicators alert the user to Go/No conditions. Orange lights for less than low set |
Size | 10-32 up to 110 lbf, M6 for 220 lbf, M10 for 550 and above |
Accuracy | up to ZTA-220 +-0.2% F.S., +-1 LSD; ZTA-550 and up +-0.3% F.S., +-1 LSD |
Capacity | 200% of F.S. (Overload indicator flashes beyond 110% of F.S.) |
Storage Temperature | Operating Temp. 32 Degree to 100 DegreeF (0 Degree to 40 DegreeC) |
ZTA Digital Force Gauge with Luminescent EL Display, Intuitive Menu Driven Interface
Standard FeaturesProduct Details:
Minimum Order Quantity | 1 Piece |
Brand | imada |
Capacity | 2N to 5000N |
Force Test Bench Types:
- Vertical type: available for various kinds of application
- Horizontal type: easy to set samples
- Handle type: able to add force more stably
- Lever type: good measurement efficiency
Model : KV-50N
Small and light: easy to carry.
- Ideal for minute measurement since the mounted force gauge travels every 1 mm by knob operation.
- Available in capacity up to 50N (5kgf).
Model : SVL-1000N
-Higher efficacy due to simple lever operation.
- Low cost.
- Space-saving size that can be placed on A4 paper
Model: SVH-1000N
- Use as a manual force tester by combining IMADA force gauge.
- More stable measurement by simple handle operation.
- Low cost.
- Space-saving size that can be placed on A4 paper.
Model: HV-500NII / HV-1000N / HV-3000N -Vertical manual test stand
- Fit for measurement of larger or extensible samples due to the longer stroke.
- More stable measurement due to handle operation.
MSF-50N
- Able to measure from different angles not only vertically/horizontally.
- Almost as small as a force gauge.
- MSL series: Force-displacement measurement is possible.
SH-1000N / SH-3000N series -Horizontal manual test stand
-Easy to set your samples due to horizontal model.
-More stable measurement due to handle operation.
Additional Information:
Product Details:
Brand | Imada |
Capacity | up to 1000N |
Manual Test Stands ( Model No. SVH – 1000 N )
Manual Test Stand ( handle )
SVH – 1000N is compact manual test stand of handle operation. It is simple and easy operation.
SPECIFICATION
Option*2 | SVL-1000N | SVH-1000N |
Extended Sharf ( No change on stroke ) | -L 600 | - L600 |
Length Meter | N / A | -S |
Product Details:
Accuracy | +/-1.0%F.S. or less |
Capacity | 500nm to 1500nm |
Gauges Measure | IP(International Protection) is a standard which is based on IEC Standard 529 for solid foreign mate |
